一、產品[Z940H Z941H電動楔式閘閥]的詳細資料：
產品名稱：電動楔式閘閥
產品型號：Z940H Z941H
產品簡介:電動楔式閘閥是一種做直線運動的閥門，它與Z型多回轉執行機構相配，有開關型和智能型。此閥門操作簡單是一種最常見的啟閉閥，它利用閘板的上下工作來接通和關斷管道中的流體介質。廣泛用于電力、冶金、石油、化工、造紙、污水處理等部門。
產品特點：
1、流體阻力小，密封面受介質的沖刷和侵蝕?。ㄩl板開啟度高）
2、開啟較有力，密封性能好，介質流向不受限制，不攏流，不降壓力。
3、形體簡單，制造工藝性好，使用范圍廣。
4、閉閥所需力矩較小。
技術參數和性能指標：
1．設計制造按GB/T 12234-89
2、結構長度按GB/T 12221-89
3、法蘭連接尺寸按：JB/T 79-94
4、閥門檢查和試驗按GB/T 13927-92
二、主要性能規范：
|
公稱壓力(MPa) |
試驗壓力(MPa) |
|||
|
殼體 |
密封(液) |
密封(氣) |
上密封 |
|
|
1.6 |
2.4 |
1.76 |
0.6 |
1.76 |
|
2.5 |
3.8 |
2.75 |
0.6 |
2.75 |
|
4.0 |
6.0 |
4.4 |
0.6 |
4.4 |
|
6.4 |
9.6 |
7.04 |
0.6 |
7.04 |
|
10.0 |
15.0 |
11.0 |
0.6 |
11.0 |
|
16.0 |
24.0 |
17.6 |
0.6 |
17.6 |
三、適用范圍：
|
殼體材料 |
適用介質 |
適用溫度 |
|
碳素鋼(C型) |
水、蒸汽、油品 |
≤425 |
|
鉻鎳鈦鋼(P型) |
硝酸類 |
≤200 |
|
鉻鎳鉬鈦鋼(R型) |
醋酸類 |
≤200 |
|
鉻鉬鋼(I型) |
水、蒸汽、油品 |
≤550 |

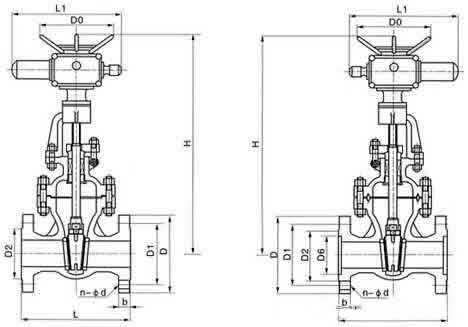

四、主要外形和連接尺寸 Main External and Connection Dimension 單位Unit:mm
|
公稱通徑DN(in) |
主要外形尺寸及連接尺寸 |
電動裝置型號 |
||||||||
|
L |
D |
D1 |
D2 |
b |
f |
z-Φd |
H |
|||
|
Z940H/Y-10C Z941H/Y-10C |
||||||||||
|
40 |
200 |
145 |
110 |
85 |
16 |
3 |
4-Φ18 |
595 |
ZB15 |
|
|
50 |
250 |
160 |
115 |
100 |
16 |
3 |
4-Φ18 |
653 |
ZB15 |
|
|
65 |
265 |
180 |
145 |
120 |
18 |
3 |
4-Φ18 |
665 |
ZB15 |
|
|
80 |
280 |
195 |
160 |
135 |
20 |
3 |
8-Φ18 |
725 |
ZB15 |
|
|
100 |
300 |
215 |
180 |
155 |
20 |
3 |
8-Φ18 |
787 |
ZB15 |
|
|
125 |
325 |
245 |
210 |
185 |
22 |
3 |
8-Φ18 |
806 |
ZB20 |
|
|
150 |
350 |
280 |
240 |
210 |
24 |
3 |
8-Φ23 |
955 |
ZB20 |
|
|
200 |
400 |
335 |
295 |
265 |
26 |
3 |
12-Φ23 |
1105 |
ZB40 |
|
|
250 |
450 |
405 |
355 |
320 |
30 |
3 |
12-Φ25 |
1343 |
ZB40 |
|
|
300 |
500 |
460 |
410 |
375 |
30 |
3 |
12-Φ25 |
1516 |
ZC45 |
|
|
350 |
550 |
520 |
470 |
435 |
34 |
4 |
16-Φ25 |
1678 |
ZC45 |
|
|
400 |
600 |
580 |
525 |
485 |
36 |
4 |
16-Φ30 |
1849 |
ZC90 |
|
|
450 |
650 |
640 |
585 |
545 |
38 |
4 |
20-Φ30 |
1937 |
ZC90 |
|
|
500 |
700 |
705 |
650 |
608 |
42 |
4 |
20-Φ34 |
2234 |
ZC120 |
|
|
600 |
800 |
840 |
770 |
718 |
46 |
5 |
20-Φ41 |
2432 |
ZC180 |
|
|
700 |
900 |
910 |
840 |
788 |
48 |
5 |
24-Φ41 |
2489 |
ZC250 |
|
|
800 |
1000 |
1020 |
950 |
898 |
50 |
5 |
24-Φ41 |
2643 |
ZC350 |
|
|
900 |
1100 |
1125 |
1050 |
998 |
52 |
5 |
28-Φ41 |
2945 |
ZC500 |
|
|
1000 |
1200 |
1255 |
1170 |
1110 |
54 |
5 |
28-Φ42 |
3083 |
ZC500 |
|
|
1200 |
1350 |
1485 |
1390 |
1325 |
56 |
5 |
32-Φ48 |
3382 |
ZC800 |
|
|
1400 |
1500 |
1685 |
1590 |
1525 |
58 |
5 |
36-Φ48 |
3718 |
ZC1000 |
|
五、主要外形和連接尺寸 Main External and Connection Dimension 單位Unit:mm
|
公稱通徑
DN
|
L
|
D
|
D1
|
D2
|
b
|
F
|
Z-d
|
H
|
電動裝置
Electirc dewice
|
WT(Kg)
|
|
Z940H/Y-16C Z941H/Y-16C
|
||||||||||
|
40
|
200
|
145
|
110
|
85
|
16
|
3
|
4-18
|
595
|
DZW15
|
56
|
|
50
|
250
|
160
|
125
|
100
|
16
|
3
|
4-18
|
653
|
DZW20
|
59
|
|
65
|
265
|
180
|
145
|
120
|
18
|
3
|
4-18
|
665
|
DZW20
|
62
|
|
80
|
280
|
195
|
160
|
135
|
20
|
3
|
8-18
|
725
|
DZW20
|
74
|
|
100
|
300
|
215
|
180
|
155
|
20
|
3
|
8-18
|
787
|
DZW20
|
92
|
|
150
|
350
|
280
|
240
|
210
|
24
|
3
|
8-23
|
955
|
DZW30
|
161
|
|
200
|
400
|
335
|
295
|
265
|
26
|
3
|
12-23
|
1105
|
DZW30
|
219
|
|
250
|
450
|
405
|
355
|
320
|
30
|
3
|
12-25
|
1343
|
DZW45
|
376
|
|
300
|
500
|
460
|
410
|
375
|
30
|
3
|
12-25
|
1516
|
DZW60
|
484
|
|
350
|
550
|
520
|
470
|
435
|
34
|
4
|
16-25
|
1678
|
DZW60
|
695
|
|
400
|
600
|
580
|
525
|
485
|
36
|
4
|
16-30
|
1849
|
DZW90
|
977
|
|
450
|
650
|
640
|
585
|
545
|
40
|
4
|
20-30
|
1937
|
DZW90
|
1033
|
|
500
|
700
|
705
|
650
|
608
|
44
|
4
|
20-34
|
2234
|
DZW120
|
1087
|
|
600
|
800
|
840
|
770
|
718
|
48
|
5
|
20-41
|
2432
|
DZW180
|
1357
|
|
700
|
900
|
910
|
840
|
788
|
50
|
5
|
24-41
|
2489
|
DZW250
|
1481
|
|
800
|
1000
|
1020
|
950
|
989
|
52
|
5
|
24-41
|
2643
|
DZW350
|
1845
|
注：DN700、DN800的型號為Z942型。
|
公稱通徑
DN
|
L
|
D
|
D1
|
D2
|
b
|
f
|
Z-d
|
H
|
電動裝置
Electirc dewice
|
WT(Kg)
|
|
Z940H/Y-25C Z941H/Y-25C |
||||||||||
|
40
|
200
|
145
|
110
|
85
|
18
|
3
|
4-18
|
595
|
DZW15
|
60
|
|
50
|
250
|
160
|
125
|
100
|
20
|
3
|
4-18
|
653
|
DZW20
|
64
|
|
65
|
265
|
180
|
145
|
120
|
22
|
3
|
8-18
|
665
|
DZW20
|
65
|
|
80
|
280
|
195
|
160
|
135
|
22
|
3
|
8-18
|
725
|
DZW20
|
79
|
|
100
|
300
|
230
|
190
|
160
|
24
|
3
|
8-23
|
787
|
DZW20
|
98
|
|
125
|
325
|
270
|
220
|
188
|
28
|
3
|
8-25
|
902
|
DZW30
|
154
|
|
150
|
350
|
300
|
250
|
218
|
30
|
3
|
8-25
|
955
|
DZW30
|
168
|
|
200
|
400
|
360
|
310
|
278
|
34
|
3
|
12-25
|
1105
|
DZW45
|
219
|
|
250
|
425
|
425
|
370
|
332
|
36
|
3
|
12-30
|
1343
|
DZW45
|
390
|
|
300
|
450
|
485
|
430
|
390
|
40
|
4
|
12-30
|
1516
|
DZW60
|
505
|
|
350
|
550
|
550
|
490
|
448
|
44
|
4
|
16-30
|
1678
|
DZW60
|
736
|
|
400
|
600
|
610
|
550
|
505
|
48
|
4
|
16-34
|
1849
|
DZW 90
|
1027
|
|
450
|
650
|
660
|
600
|
555
|
50
|
4
|
16-34
|
1937
|
DZW90
|
1139
|
|
500
|
700
|
730
|
660
|
610
|
52
|
4
|
20-34
|
2234
|
DZW120
|
1228
|
|
600
|
80
|
840
|
770
|
718
|
56
|
5
|
20-41
|
2432
|
DZW180
|
1502
|
|
700
|
900
|
955
|
875
|
815
|
60
|
5
|
20-41
|
2489
|
DZW250
|
161, 7
|
|
800
|
1000
|
1070
|
990
|
930
|
64
|
5
|
24-48
|
2643
|
DZW350
|
1923
|
注：DN700、DN800的型號為Z942型。
|
公稱通徑
DN
|
L
|
D
|
D1
|
D2
|
b
|
F
|
Z-d
|
f
|
f2
|
H
|
電動裝置
Electirc dewice
|
WT(Kg)
|
|
Z940H/Y-40C Z941H/Y-40C |
||||||||||||
|
40
|
200
|
145
|
110
|
85
|
18
|
18
|
4-18
|
3
|
4
|
617
|
DZW15
|
46
|
|
50
|
250
|
160
|
125
|
100
|
20
|
20
|
4-18
|
3
|
4
|
665
|
DZW20
|
58
|
|
65
|
280
|
180
|
145
|
120
|
110
|
22
|
8-18
|
3
|
4
|
680
|
DZW20
|
68
|
|
80
|
310
|
195
|
160
|
135
|
121
|
22
|
8-18
|
3
|
4
|
752
|
DZW20
|
80
|
|
100
|
350
|
230
|
190
|
160
|
150
|
24
|
8-23
|
3
|
4.5
|
846
|
DZW30
|
18
|
|
150
|
450
|
300
|
250
|
218
|
204
|
30
|
8-25
|
3
|
4.5
|
1087
|
DZW45
|
258
|
|
200
|
550
|
375
|
320
|
282
|
260
|
38
|
12-30
|
3
|
4.5
|
1243
|
DZW45
|
366
|
|
250
|
650
|
445
|
385
|
345
|
313
|
42
|
12-34
|
3
|
4.5
|
1429
|
DZW60
|
472
|
|
300
|
750
|
510
|
450
|
408
|
364
|
46
|
16-34
|
4
|
4.5
|
1608
|
DZW90
|
673
|
|
350
|
850
|
570
|
510
|
465
|
422
|
52
|
16-34
|
4
|
5
|
1738
|
DZW90
|
804
|
|
400
|
950
|
655
|
585
|
535
|
474
|
58
|
16-41
|
4
|
5
|
1897
|
DZW120
|
1081
|
|
450
|
1050
|
680
|
610
|
560
|
524
|
60
|
20-41
|
4
|
5
|
2104
|
DZW180
|
1259
|
|
500
|
1150
|
755
|
670
|
612
|
576
|
62
|
20-48
|
4
|
5
|
2401
|
DZW18
|
1348
|
八、主要外形和連接尺寸 Main External and Connection Dimension 單位Unit:mm
|
4.0MPa |
DN |
L |
D |
D1 |
D2 |
D6 |
b |
n-φd |
電裝型號 |
L1 |
H |
DO |
|
凹凸法蘭 |
40 |
200 |
145 |
110 |
85 |
76 |
18 |
4-φ18 |
DZWl0 |
590 |
630 |
365 |
|
50 |
250 |
160 |
125 |
100 |
88 |
20 |
4-φ18 |
DZWlO |
590 |
691 |
365 |
|
|
65 |
280 |
180 |
145 |
120 |
110 |
22 |
8-φ18 |
DZWl0 |
590 |
711 |
365 |
|
|
80 |
310 |
195 |
160 |
135 |
121 |
22 |
8-φ18 |
DZWl5 |
590 |
775 |
365 |
|
|
100 |
350 |
230 |
190 |
160 |
150 |
24 |
8-φ23 |
DZW20 |
590 |
871 |
365 |
|
|
125 |
400 |
270 |
220 |
188 |
176 |
28 |
8-φ25 |
DZW20 |
590 |
948 |
365 |
|
|
150 |
450 |
300 |
250 |
218 |
204 |
30 |
8-φ25 |
DZW30 |
810 |
1028 |
470 |
|
|
200 |
550 |
375 |
320 |
282 |
260 |
38 |
12-φ30 |
DZW30 |
810 |
1325 |
470 |
|
|
250 |
650 |
445 |
385 |
345 |
313 |
42 |
12-φ34 |
DZW45 |
810 |
1400 |
470 |
|
|
300 |
750 |
510 |
450 |
408 |
364 |
46 |
16-φ34 |
DZW60 |
830 |
1653 |
550 |
|
|
350 |
850 |
570 |
510 |
465 |
422 |
52 |
16-φ34 |
DZW90 |
830 |
1791 |
550 |
|
|
400 |
950 |
655 |
585 |
535 |
474 |
58 |
16-φ41 |
DZWl20 |
870 |
2092 |
320 |
|
|
500 |
1150 |
755 |
670 |
612 |
576 |
62 |
20-φ48 |
DZW250 |
870 |
2465 |
320 |
|
|
600 |
1350 |
890 |
795 |
730 |
678 |
62 |
20-φ54 |
DZW350 |
1170 |
- |
570 |
|
|
700 |
1450 |
995 |
900 |
835 |
768 |
68 |
24-φ54 |
DZW500 |
1170 |
- |
570 |
|
|
800 |
1650 |
1135 |
1030 |
960 |
876 |
76 |
24-φ58 |
DZW800 |
1060 |
- |
500 |
|
|
6.4MPa |
40 |
240 |
165 |
125 |
95 |
76 |
24 |
4-φ23 |
DZWlO |
590 |
665 |
365 |
|
凹凸法蘭 |
50 |
250 |
175 |
135 |
105 |
88 |
26 |
4-φ23 |
DZWl0 |
590 |
790 |
365 |
|
65 |
280 |
200 |
160 |
130 |
110 |
28 |
8-φ23 |
DZWl0 |
590 |
840 |
365 |
|
|
80 |
310 |
210 |
170 |
140 |
121 |
30 |
8-φ23 |
DZW20 |
590 |
890 |
365 |
|
|
100 |
350 |
250 |
200 |
168 |
150 |
32 |
8-φ25 |
DZW20 |
590 |
1020 |
365 |
|
|
125 |
400 |
295 |
240 |
202 |
176 |
36 |
8-φ30 |
DZW30 |
590 |
1100 |
365 |
|
|
150 |
450 |
340 |
280 |
240 |
204 |
38 |
8-φ34 |
DZW30 |
810 |
1290 |
470 |
|
|
200 |
550 |
405 |
345 |
300 |
260 |
44 |
12-φ34 |
DZW60 |
810 |
1470 |
470 |
|
|
250 |
650 |
470 |
400 |
352 |
313 |
48 |
12-φ41 |
DZW90 |
830 |
1500 |
550 |
|
|
300 |
750 |
530 |
460 |
412 |
364 |
54 |
16-φ41 |
DZW90 |
830 |
1820 |
550 |
|
|
350 |
850 |
595 |
525 |
475 |
422 |
60 |
16-φ41 |
DZWl20 |
870 |
2216 |
320 |
|
|
400 |
950 |
670 |
585 |
525 |
474 |
66 |
16-φ48 |
DZWl80 |
870 |
2838 |
320 |
|
|
500 |
1150 |
800 |
705 |
640 |
576 |
70 |
20-φ54 |
DZW250 |
1170 |
3320 |
570 |
|
|
600 |
1350 |
930 |
820 |
750 |
678 |
76 |
20-φ58 |
DZW500 |
1170 |
3684 |
570 |
九、主要外形和連接尺寸 Main External and Connection Dimension 單位Unit:mm
|
10．0MPa |
DN |
L |
D |
Dl |
D2 |
D6 |
b |
n-φd |
電裝型號 |
L1 |
H |
DO |
|
凹凸法蘭 |
40 |
240 |
165 |
125 |
95 |
76 |
26 |
4-φ23 |
DZW10 |
590 |
680 |
365 |
|
50 |
250 |
195 |
145 |
112 |
88 |
28 |
4-φ25 |
DZW15 |
590 |
810 |
365 |
|
|
65 |
280 |
220 |
170 |
138 |
110 |
32 |
8-φ25 |
DZW20 |
590 |
860 |
365 |
|
|
80 |
310 |
230 |
180 |
148 |
121 |
34 |
8-φ25 |
DZW20 |
590 |
892 |
365 |
|
|
100 |
350 |
265 |
210 |
172 |
150 |
38 |
8-φ30 |
DZW30 |
810 |
1013 |
470 |
|
|
125 |
400 |
310 |
250 |
210 |
176 |
42 |
8-φ34 |
DZW45 |
810 |
1184 |
470 |
|
|
150 |
450 |
350 |
290 |
250 |
204 |
46 |
12-φ34 |
DZW60 |
830 |
1250 |
550 |
|
|
200 |
550 |
430 |
360 |
312 |
260 |
54 |
12-φ41 |
DZW90 |
830 |
1450 |
550 |
|
|
250 |
650 |
500 |
430 |
382 |
313 |
60 |
12-φ41 |
DZW120 |
870 |
1650 |
320 |
|
|
300 |
750 |
585 |
500 |
442 |
364 |
70 |
16-φ48 |
DZW180 |
870 |
1800 |
320 |
|
|
350 |
850 |
655 |
560 |
498 |
422 |
76 |
16-φ54 |
DZW250 |
1170 |
2030 |
570 |
|
|
400 |
950 |
715 |
620 |
558 |
474 |
80 |
16-φ54 |
DZW500 |
1170 |
2250 |
570 |
|
|
16.0MPa |
40 |
260 |
175 |
125 |
92 |
76 |
32 |
4-φ27 |
DZWl5 |
590 |
812 |
365 |
|
凹凸法蘭 |
50 |
300 |
215 |
165 |
132 |
88 |
36 |
8-φ25 |
DZW20 |
590 |
905 |
365 |
|
65 |
340 |
245 |
190 |
152 |
110 |
44 |
8-φ30 |
DZW20 |
590 |
968 |
365 |
|
|
80 |
390 |
260 |
205 |
168 |
121 |
46 |
8-φ30 |
DZW30 |
590 |
978 |
365 |
|
|
100 |
450 |
300 |
240 |
200 |
150 |
48 |
8-φ34 |
DZW60 |
810 |
1043 |
470 |
|
|
125 |
525 |
355 |
285 |
238 |
176 |
60 |
8-φ41 |
DZW90 |
810 |
1248 |
470 |
|
|
150 |
600 |
390 |
318 |
270 |
204 |
66 |
12-φ41 |
DZW120 |
830 |
1394 |
550 |
|
|
200 |
750 |
480 |
400 |
345 |
260 |
78 |
12-φ48 |
DZW120 |
830 |
1621 |
550 |
|
|
250 |
838 |
580 |
485 |
425 |
313 |
88 |
12-φ54 |
DZW180 |
870 |
1935 |
320 |
|
|
300 |
965 |
665 |
570 |
510 |
364 |
100 |
16-φ54 |
DZW250 |
870 |
2411 |
320 |
